MAC'S Vertical Home Lift PL-50 & PL-72 Specifications Wheelchair Elevator for School, Porch, Mobile Home, Residential, LA Commercial, Church - American Disabilities Act - ADA - Handicap Elevators

The World's Most Knowledgeable Staff on Electric Medical Equipment

Before You Buy An Electric Wheelchair-Elevator, we need to ask you the following questions:

1.  How many feet do you have to go up?
2.  Commercial or Residential Setting?
3.  Are you going to be transporting an Electric Wheelchair?
4.  What Are Your Plans for Entrance and Exit of the Wheelchair-Elevator?
5.  What type of area are you planning to put the Wheelchair-Elevator on?

Macs PL50 and PL72 Vertical Platform Lifts; Mac's PL-50 and PL-72 Wheelchair Elevators Specifications Wheelchair Elevator for School, Porch, Mobile Home, Residential, LA Commercial, Church - American Disabilities Act - ADA - Handicap Elevators

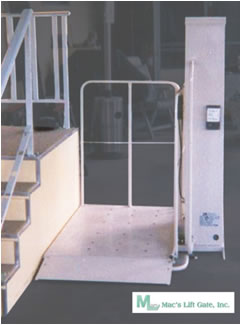

MAC'S Lift Gate Inc. Inc. 1/4-ton Vertical Lift for the Home Guaranteed Quality At A Discounted Price. MAC's vertical lifts for the home removed the barrier of stairs . . . " A Step Above The Rest." Engineered to safely carry up to a 1/4-ton (600 pounds), MAC's vertical lift (PL-50 and PL-72) was designed for easy installation and virtually maintenance-free home use. Authorized Dealer Contact Us Vertical Home Lifts PL-50 PL-72

"50 Years of Serving the Disabled Community"   Download the PL-50 Document MAC's Vertical Home Lift Specifications The MAC's Vertical Home Lift was designed and engineered for home use. It's easy to operate easy to install and virtually maintenance free. Every safety detail has been carefully designed into the PL-50 and PL-72, including a non-slip platform, constant pressure switches, a low platform for easy roll-on/roll-off, safety barrier and railing, and rolled edges. The PL-50 and PL-72 are sturdy enough to lift and lower up to 600 pounds and will accommodate electric wheelchairs and scooters. Running on a gear box and chain, the PL-50 and PL-72 provide a smooth and quiet up and down ride, requiring little maintenance. All mechanics are fully enclosed, yet easy to access through the rear or front of the housing unit. The lifts are completely weatherized and attractively finished in off-white. Shipped fully assembled, the PL-50 and PL-72 install in 6 easy steps. The Mac's Vertical Home Lifts are the economical and practical answer to stair barriers. Quality Assurance Manufacturing A company with not less the thirty eight (38) years of experience in the design, fabrication and installation of specialized lifting equipment for handicapped and geriatric consumers should supply the lift. Performance Requirements The unit shall be assembled and prewired (less optional equipment and necessary gates) and manufactured with adequate lifting and load capacity for application described elsewhere in this specification. The unit shall be easy to operate by the user or attendant and shall be capable of functioning in all weather conditions. The unit shall have the capacity to lift up to 500 lbs. to the desired lifting height up to a maximum lift height of six ( 6 ) feet. Composition of Materials Machine tower: 14 gauge cold rolled steel. Base frame: 1 1/2" square x 3/16" Structural steel tubing. Lift weldment: 1 1/2" x 3" x .188" wall structure steel tubing. Tower cap: 10 gauge cold rolled steel plate Side Guard Rails: 1" round x .120" gauge steel tubing (frame). Platform: 14 gauge cold rolled steel plate with slip resistance surface. Access ramp: 11 gauge steel plate with slip resistance surface. Electrical box: 16 gauge galvanized steel Switch box: Hi-impact A.B.S. Thermoplastic instrument case. Limitations: Vertical platform lift shall operate both indoors and out, and must be anchored on a level, 4" thick, 3500 psi reinforced concrete surface or pad. Electrical System & Wiring: The unit shall be pre-wired by manufacturer with exterior grade thermoplastic coated wiring. Extension Cord, 14 gauge UL-CSA approved is recommended if power source is not within three (3) feet of Machine tower. Machine may also be wired using water proof conduct. Powder Coat Finish Prep, Primer, & Powder Coat Process 1. 3 Stage wash, soapy water, clear water, and Iron Phosphate which is applied to parts. 2. Parts are inspected and scuffed 3. Epoxy Primer is applied 4. Parts are baked at 250 degrees for 15 minutes 5. Parts are inspected and scuffed if needed 6. Huebert O'Brian Powder-TCIC Polyester 7. Mixed with Paint, Color Almond PFT-500-SS 8. Powder Coat is applied and baked at 400 degrees for 30 min. 9. Parts are inspected and scuffed if needed Safety Devices The unit shall have the following safety features for protection of users and the general public: ï Upper and lower limit switches ï Instant Reverse Motor ï Powered with 110 volt AC current, by 1/2 HP motor, 6.4 Amp ï Grounded electrical system ï Heavy duty worm drive gear box with heavy duty #50 lifting chain ï Automatic access ramp ï 36" guard rails on non-enter and exit sides of platform ï Non-Skid platform and access ramp surface ï Key-lock control ï Switching & Control system 24 VAC low voltage currentInstallation The contractor shall do all work and supply all materials necessary for the complete installation, It is the intent of this specification to outline broadly the equipment required but not to cover the details of design and construction. Maintenance Maintenance of the vertical platform lift unit shall consist of regular cleaning of the unit, protection of the painted surface of the unit. Warranty Unit shall have one ( 1 ) year limited warranty on the basic unit and electrical system with a two (2) year warranty of drive train components. Note This specification has been written to assist you and your consumer in preparing an accurate and detailed description for specifying a vertical platform lift. All or part of this specification may be reproduced. Additional technical information is available from our Product Engineering Department. Vertical Home Lifts PL-50 PL-72 "50 Years of Serving the Disabled Community"

MAC's Vertical Home Lift Was designed and engineered for home use. It's easy to operate easy to install and virtually maintenance free. Every safety detail has been carefully designed into the PL-50 and PL-72, including a non-slip platform, constant pressure switches, a low platform for easy roll-on/roll-off, safety barrier and railing, and rolled edges. The PL-50 and PL-72 are sturdy enough to lift aud lower up to 600 pounds and will accommodate electric wheelchairs and scooters. Running on a gear box and chain, the PL-50 and PL-72 provide a smooth and quiet up and down ride, requiring little maintenance. All mechanics are fully enclosed, yet easy to access through the rear or front of the housing unit. The lifts are completely weatherized and attractively finished in off-white. Shipped fully assembled, the PL-50 and PL-72 install in 6 easy steps. The Mac's Vertical Home Lifts are the economical and practical answer to stair barriers. Download the PL-72 Document Quality Assurance Manufacturing: A company with not less the thirty eight (38) years of experience in the design, fabrication and installation of specialized lifting equipment for handicapped and geriatric consumers should supply the lift. Performance Requirements: The unit shall be assembled and pre wired (less optional equipment and necessary gates) and manufactured with adequate lifting and load capacity for application described elsewhere in this specification. The unit shall be easy to operate by the user or attendant and shall be capable of functioning in all weather conditions. The unit shall have the capacity to lift up to 600 lbs. to the desired lifting height up to a maximum lift height of six ( 6 ) feet. Composition of Materials: Machine tower: 14 gauge cold rolled steel. Base frame: 1 1/2" square x 3/16" Structural steel tubing. Lift weldment: 1 1/2" x 3" x .188" wall structure steel tubing. Tower cap: 10 gauge cold rolled steel plate Side Guard Rails: 1" round x .120" gauge steel tubing (frame). Platform: 14 gauge cold rolled steel plate with slip resistance surface. Access ramp: 11 gauge steel plate with slip resistance surface. Electrical box: 16 gauge galvanized steel Switch box: Hi-impact A.B.S. Thermoplastic instrument case. Lirnitations: Vertical platform lift shall operate both indoors and out, and must be anchored on a level, 4" thick, 3600 psi reinforced concrete surface or pad. Electrical System Wiring: The unit shall be pre-wired by manufacturer with exterior grade thermoplastic coated wiring. Extension Cord, 14 gauge UL-CSA approved is recommended if power source is not within three (3) feet of Machine tower. Machine may also be wired using water proof conduct. Powder Coat Finish Prep, Primer, & Powder Coat Process. 1. 3 Stage wash, soapy water, clear water, and Iron Phosphate which is applied to parts. 2. Parts are inspected and scuffed 3. Epoxy Primer is applied 4. Parts are baked at 250 degrees for 15 minutes 5. Parts are inspected and scuffed if needed 6. Huebert O'Brian Powder-TCIC Polyester 7. Mixed with Paint, Color Almond PFT-600-SS 8. Powder Coat is applied and baked at 400 degrees for 30 min. 9. Parts are inspected and scuffed if needed Safety Devices The unit shall have the following safety features for protection of users and the general public: · Upper and lower limit switches · Instant Reverse Motor · Powered with 110 volt AC current, by 1/2 HP motor, 6.4 Amp · Grounded electrical system · Heavy duty worm drive gear box with heavy duty #50 lifting chain · Automatic access ramp · 36" guard rails on non-enter and exit sides of platform · Non-Skid platform and access ramp surface · Key-lock control · Switching & Control system 24 VAC low voltage current Installation The contractor shall do all work and supply all materials necessary for the complete installation, It is the intent of this specification to outline broadly the equipment required but not to cover the details of design and construction. Maintenance Maintenance of the vertical platform lift unit shall consist of regular cleaning of the unit, protection of the painted surface of the unit. Warranty Unit shall have one ( 1 ) year limited warranty on the basic unit and electrical system with a two (2) year warranty of drive train components. Note: This specification has been written to assist you and your consumer in preparing an accurate and detailed description for specifying a vertical platform lift. All or part of this specification may be reproduced. Additional technical information is available from our Product Engineering Department.   Vertical Home Lifts PL-50 PL-72

"50 Years of Serving the Disabled Community"

MAC's Vertical Home Lift Was designed and engineered for home use. It's easy to operate easy to install and virtually maintenance free. Every safety detail has been carefully designed into the PL-50 and PL-72, including a non-slip platform, constant pressure switches, a low platform for easy roll-on/roll-off, safety barrier and railing, and rolled edges. The PL-50 and PL-72 are sturdy enough to lift aud lower up to 600 pounds and will accommodate electric wheelchairs and scooters. Running on a gear box and chain, the PL-50 and PL-72 provide a smooth and quiet up and down ride, requiring little maintenance. All mechanics are fully enclosed, yet easy to access through the rear or front of the housing unit. The lifts are completely weatherized and attractively finished in off-white. Shipped fully assembled, the PL-50 and PL-72 install in 6 easy steps. The Mac's Vertical Home Lifts are the economical and practical answer to stair barriers. Download the PL-72 Document Quality Assurance Manufacturing: A company with not less the thirty eight (38) years of experience in the design, fabrication and installation of specialized lifting equipment for handicapped and geriatric consumers should supply the lift. Performance Requirements: The unit shall be assembled and pre wired (less optional equipment and necessary gates) and manufactured with adequate lifting and load capacity for application described elsewhere in this specification. The unit shall be easy to operate by the user or attendant and shall be capable of functioning in all weather conditions. The unit shall have the capacity to lift up to 600 lbs. to the desired lifting height up to a maximum lift height of six ( 6 ) feet. Composition of Materials: Machine tower: 14 gauge cold rolled steel. Base frame: 1 1/2" square x 3/16" Structural steel tubing. Lift weldment: 1 1/2" x 3" x .188" wall structure steel tubing. Tower cap: 10 gauge cold rolled steel plate Side Guard Rails: 1" round x .120" gauge steel tubing (frame). Platform: 14 gauge cold rolled steel plate with slip resistance surface. Access ramp: 11 gauge steel plate with slip resistance surface. Electrical box: 16 gauge galvanized steel Switch box: Hi-impact A.B.S. Thermoplastic instrument case. Lirnitations: Vertical platform lift shall operate both indoors and out, and must be anchored on a level, 4" thick, 3600 psi reinforced concrete surface or pad. Electrical System Wiring: The unit shall be pre-wired by manufacturer with exterior grade thermoplastic coated wiring. Extension Cord, 14 gauge UL-CSA approved is recommended if power source is not within three (3) feet of Machine tower. Machine may also be wired using water proof conduct. Powder Coat Finish Prep, Primer, & Powder Coat Process. 1. 3 Stage wash, soapy water, clear water, and Iron Phosphate which is applied to parts. 2. Parts are inspected and scuffed 3. Epoxy Primer is applied 4. Parts are baked at 250 degrees for 15 minutes 5. Parts are inspected and scuffed if needed 6. Huebert O'Brian Powder-TCIC Polyester 7. Mixed with Paint, Color Almond PFT-600-SS 8. Powder Coat is applied and baked at 400 degrees for 30 min. 9. Parts are inspected and scuffed if needed Safety Devices The unit shall have the following safety features for protection of users and the general public: · Upper and lower limit switches · Instant Reverse Motor · Powered with 110 volt AC current, by 1/2 HP motor, 6.4 Amp · Grounded electrical system · Heavy duty worm drive gear box with heavy duty #50 lifting chain · Automatic access ramp · 36" guard rails on non-enter and exit sides of platform · Non-Skid platform and access ramp surface · Key-lock control · Switching & Control system 24 VAC low voltage current Installation The contractor shall do all work and supply all materials necessary for the complete installation, It is the intent of this specification to outline broadly the equipment required but not to cover the details of design and construction. Maintenance Maintenance of the vertical platform lift unit shall consist of regular cleaning of the unit, protection of the painted surface of the unit. Warranty Unit shall have one ( 1 ) year limited warranty on the basic unit and electrical system with a two (2) year warranty of drive train components. Note: This specification has been written to assist you and your consumer in preparing an accurate and detailed description for specifying a vertical platform lift. All or part of this specification may be reproduced. Additional technical information is available from our Product Engineering Department.   Vertical Home Lifts PL-50 PL-72

"50 Years of Serving the Disabled Community" Contact Us WORLD'S LOWEST PRICES (800)528-3974 Since 1964 Report SERVING ALL AREAS Family Owned Since 1964   Our 44 Year Experience Means The Right Product for You! Also, see The Bruno Vertical Wheelchair Platform Lift VPL-3100 or the or the Wheelchair Elevators by Trus-T-Lift:  The Trus-T-Lift manufactures Models that can go all the way up from the first story to the second story. Authorized Dealer The World's Most Knowledgeable Staff on Electric Medical Equipment
