Disabled Trus-T-Lift

Trus-T-Lift: wheel chair Trusty Residential trustlift wheelchair elevator, trus-t-lift vertical platform lift; wheelchair elevator handicapped lift

Before you buy the "Trusty" Trus-T-Lift, we need to know:

1. Is your travel going to be maximum 28", 52", 72", 96", 120" or 144"?

2. Access: Straight through lower access on Right; Straight through lower access on Left; Adjacent access lower access on Right; Adjacent access lower access on Left?

3. Do you need a Commercial Package?

4. Do you need a D.C. Unit (Direct Current)?

5. Solid Hand Rail?

6. Solid Platform?

7. Carr Gate and Interlock Options?

8. Lower Gate and Interlock Options?

9. Cont. Wall Ext?

10. Solid Endwall?

11. Safety Pan?

12. Portable?

13. Upper Remote: P/B; Toggle; Key

14. Lower Remote: P/B; Toggle; Key

15. Interlock Only: Lower Floor; Top Floor?

Trus-T-Lift: wheel chair Residential trustlift wheelchair elevator,where,handicapped, lift

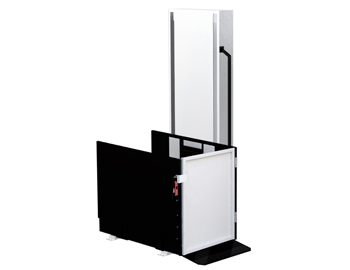

WHEEL CHAIR ELEVATOR FREEDOM, INDEPENDENCE, MOBILITY RAM Manufacturing would like to introduce you to a wheelchair lift that will change the way porch lifts are sold and installed across North America. The Trus<T>Lift, is a simple, safe and reliable wheelchair elevator that features quick and easy installation and a design that meets U.S. and Canadian safety standards. This vertical platform lift designed primarily for lifting physically challenged persons from the ground level up to the main floor of their homes. The Trus<T>Lift is made of three simple components, which allows for easy set-up in less than half an hour.

Trus-T-Lift: wheel chair Residential trustlift wheelchair elevator,where,handicapped, lift WHEELCHAIR ELEVATOR Models and Specifications

Models:

Trus-T-Lift is engineered for year-round use. The lift features a 550-pound (250-kg) capacity, and is available in both 52- and 72-inch (1321- and 1828-mm) lifting heights, with straight-through or 90-degree access. It also features a direct drive worm-gear/screw-nut drive for maintenance-free operation.
Specifications:

Disabled Trus-T-Lift

The Trus-T-Lift Specifications are as follows:

• 34" x 54" (864 mm x 1372 mm) lift platform (Residential)

• 40" x 54" (1016 mm x 1372 mm) lift platform (Adjacent Access)

• 48" x 54" (1219 mm x 1372 mm) footprint (Residential)

• 54" x 54" (1372 mm x 1372 mm) footprint (Adjacent Access)

• 72" (1829 mm) or 92" (2337 mm) height

• 0" - 52" (0 mm - 1321 mm) lift range (72" tall model)

• 0" - 72" (0 mm - 1829 mm) lift range (92" tall model)

• 8 feet/min. (2.4 m/min.) lift speed

• 330-pound (150 kg) shipping weight, in a 6' x 4' x 1-1/2' (1.8 m x 1.2 m x 0.5 m) carton

• fuse box accessible from carriage

• quick and easy set-up and adjustment

• low maintenance

• non-load-bearing backup safety nut on lift shaft

• safety handrail on carriage

• zero-load start in bottom position

• 110 V AC/15A circuit

• manual operation for power outages

Options:

The Trus-T-Lift offers the following options:

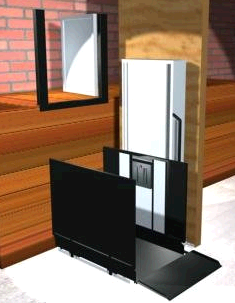

• Adjacent access carriage for corner installations

• Solid side walls

• Under platform safety plate and solid platform

• Remote call stations

• Custom lift heights available

• 18" extra wide toe plate

• Upper, lower, and carriage mounted gates

• Mechanical/electrical gate interlocks

---

Trus-T-Lift: wheel chair Residential trustlift wheelchair elevator,where,handicapped, lift Installation:

The Trus-T-Lift has many advantages, not the least of which is ease of installation. It is, in fact, as easy as 1-2-3.

1. Position and secure the base frame on the pad.

2. Secure the tower to the base frame.

3. Attach the carriage to the tower.

---

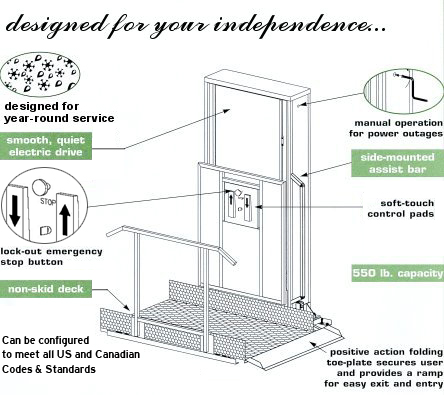

• Innovative Soft Touch Control Pads for ease of operation.
• Direct drive Worm-Gear / Screw-Nut Drive for maintenance free operation, incorporating zero load start for cold weather climates (drive system allows motor to get up to full speed before lifting car).
• Expanded Metal Platform allows full under platform visibility.
• Keyed Emergency Stop to control use of lift.



Trus-T-Lift Installation Manuals

Just select the image that matches the lift you want to install to display a full color installation manual. Or click "Get Acrobat File" to get the document in Adobe AcrobatâÆ¢ Format.
